Minardi

Minardi

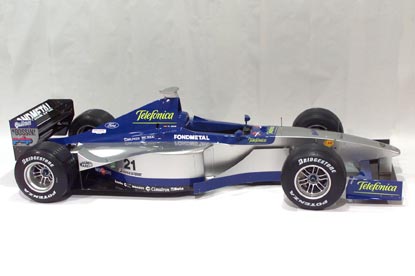

The Minardi M01 - side view

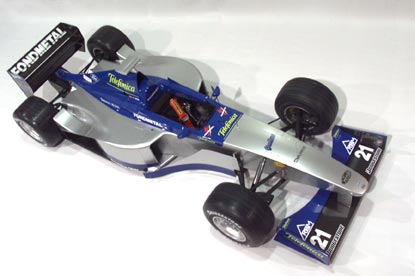

The Minardi M01 - slant view

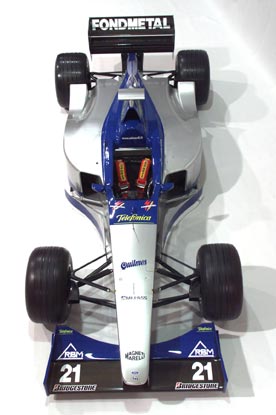

The Minardi M01 - top view


Marc Gene Luca Badoer
Marc Gené Luca Badoer


Technical Specifications
Chassismonocoque body in carbon fibre
and aluminium honeycomb composite;
2 pedals
Bodywork, wingscarbon fibre
Suspensioncarbon push-rod with torsion bars;
steel wishbones;
F/S shock absorbers
Steeringrack and pinion; wheel (dia. 275) in carbon
with clutch and gear levers
BrakesBrembo calipers, with six pistons front and rear,
Carbone Industrie carbon fibre disks;
hydraulic brake balance adjuster
GearboxMinardi longitudinal in magnesium,
six-speed plus reverse,
semi-automatic with Magneti Marelli
electronic control (Minardi software)
DifferentialMinardi viscous
ClutchAp Racing, three-disk in carbon fibre
Wheelsmagnesium (front 13" x 12.5", rear 13" x 13.7")
Dimensionslength 4420 mm, width 1800 mm,
front track 1452 mm, rear track 1420.7 mm

Engine
NameFord Zetec-R V10
Number of cylinders10
Configuration72° V
No. valves40
Capacity2998 cc
Power outputnot discosed

Materials Used
Cylinder blockaluminium produced
by Cosworth Castings
Crankshaftsteel machined by Cosworth
Pistonsaluminium, forged and
machined by Cosworth
Engine management
system
Magneti Marelli Step 8,
software to Minardi spec
Lubrification systemdry sump
Ignition systemMagneti Marelli
Spark plugsChampion

Official Websitehttp://www.minardi.it/
